Descrizione

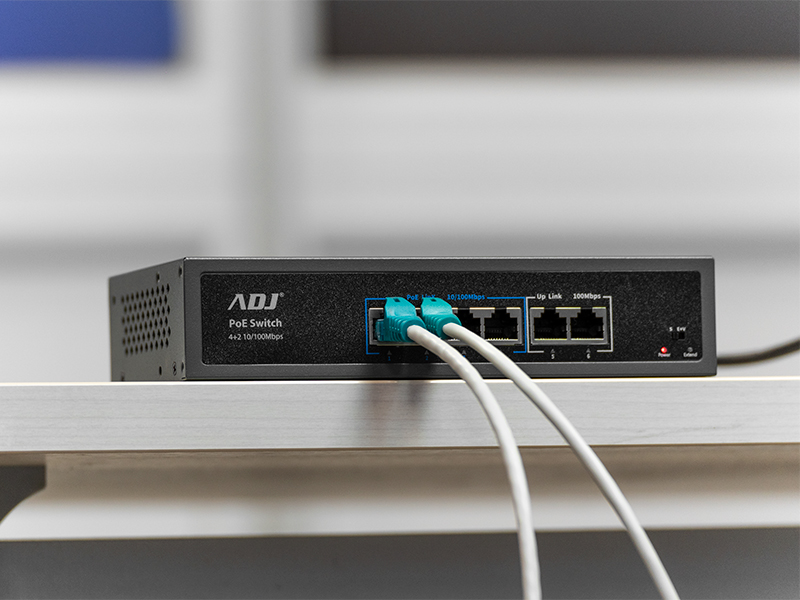

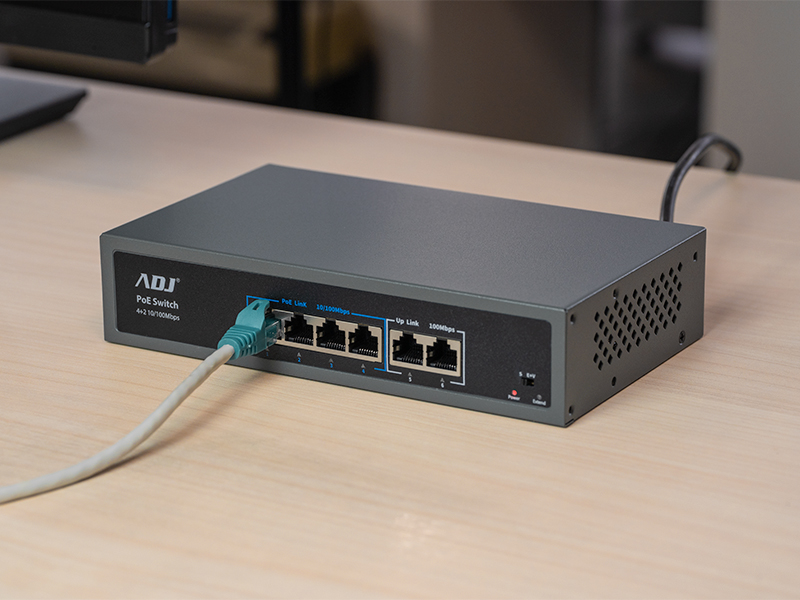

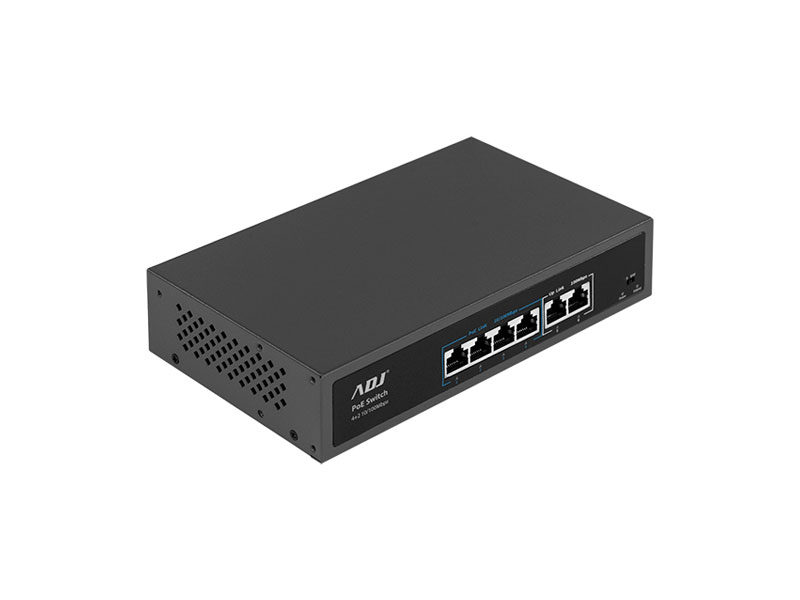

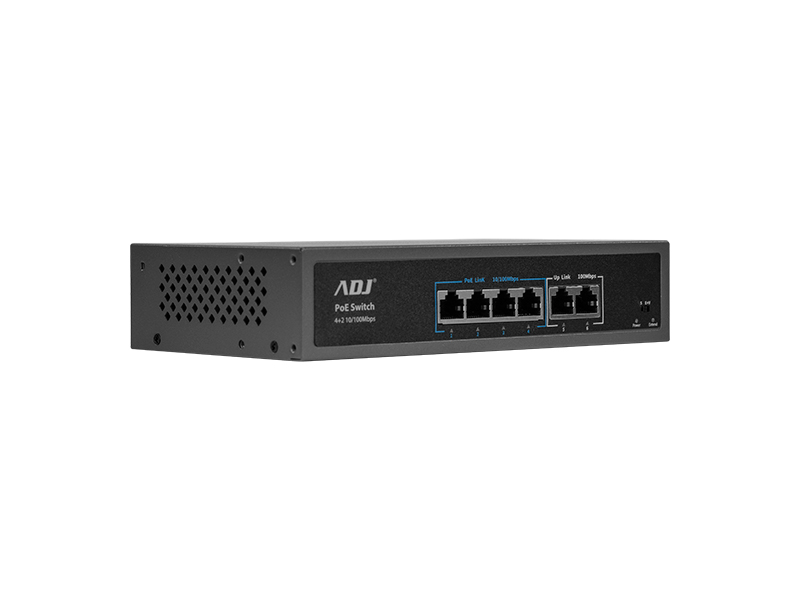

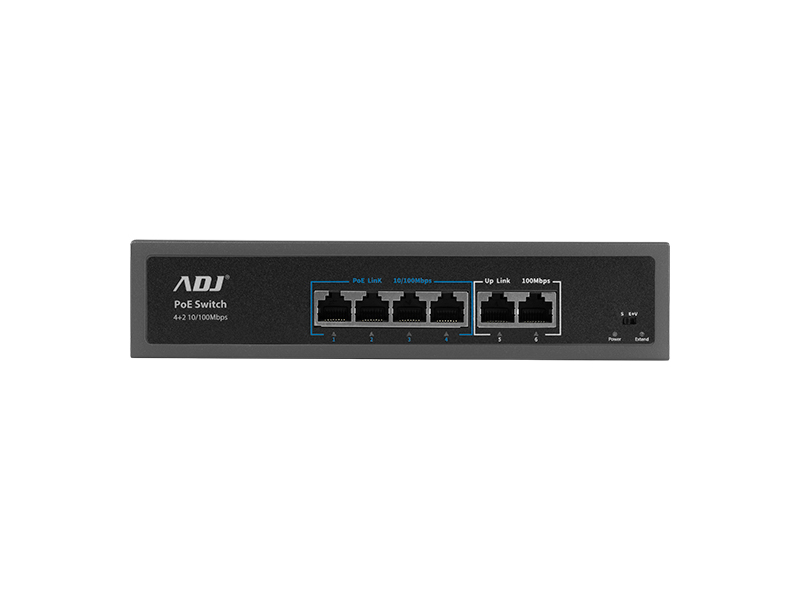

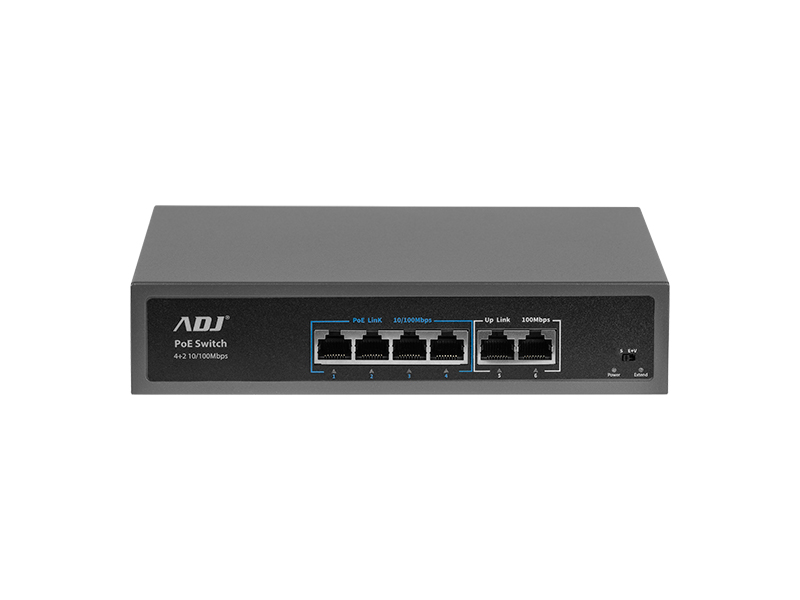

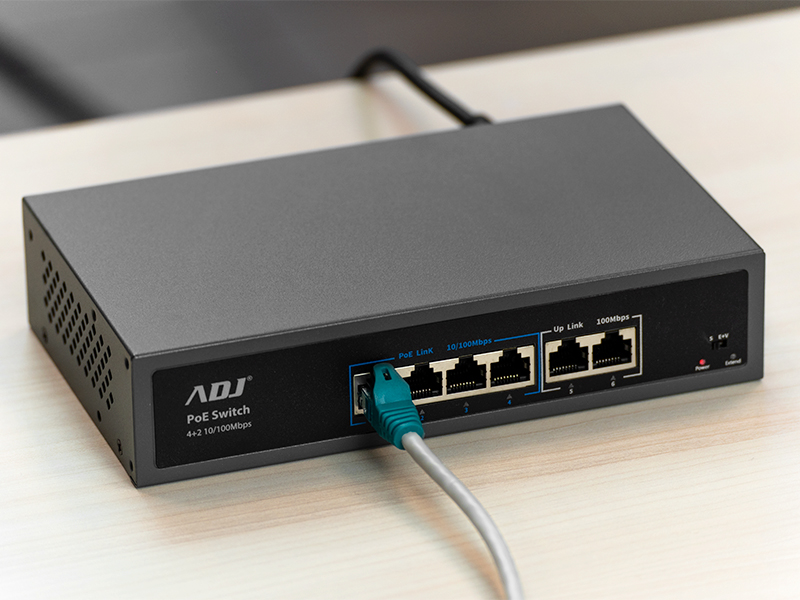

4 PORTE POE PLUS
Per gestire dati e alimentare tutte le telecamere PoE/PoE Plus

PROGETTATO PER IMPIANTI DI SICUREZZA
Il circuito di protezione antistatico e contro le sovratensioni permette di migliorare la stabilità del prodotto

CARATTERISTICHE TECNICHE
PoE Ports | 4x10/100Mbps |
Uplink Ports | 2x10/100 Mbps |
Output Power | 15.4W/30W |
Power Pin | 1/2+ 3/6- |
Whole Power | ≤78W(52V1.5A) |
POE Type | End-span |
Power Distance | ≤250m |
Network Standard | IEEE802.3AF/AT |
Switch Capability | 1.6 Gbps |
MAC Address | MAC address table 1K |
Forwarding Rate | 100Mbps: 14880pps |
Working Environment | -10 ° +55 ° C |
Dimensions (LxWxH) | 200 x 118 x 44 mm |
Packaging dimensions (LxWxH) | 235 x 190 x 70 mm |
Material | Metal |
Weight | 1 Kg |
